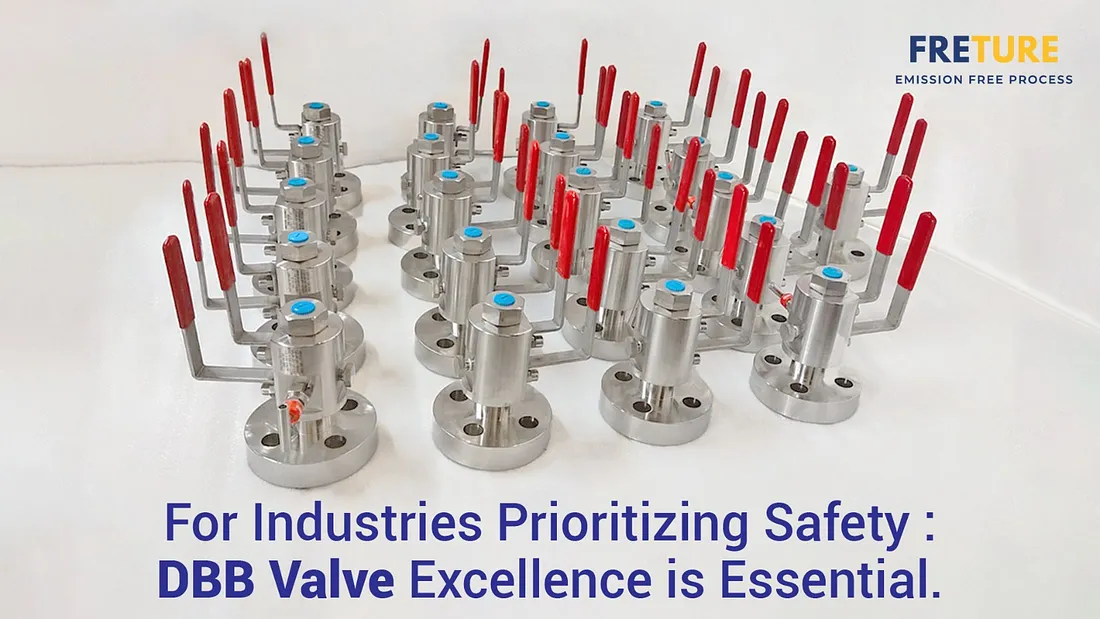

DBB Ball Valves: A Comprehensive Guide to Function, Benefits, and Applications

 A DBB Ball Valve, also known as a Double Block and Bleed Ball Valve, is an advanced valve technology designed to enhance safety, operational efficiency, and maintenance in various industrial applications. Combining two isolation barriers and a bleed function within a single unit, DBB ball valves provide a robust solution for isolating sections of pipelines, preventing leaks, and ensuring the safe transfer of fluids or gases. This article delves into the features, benefits, and common applications of DBB ball valves, providing insights into why they are a preferred choice in industries like oil and gas, petrochemicals, and pharmaceuticals.

What is a DBB Ball Valve?

A DBB Ball Valve is a type of valve used to isolate a section of a pipeline while also providing a means to bleed off trapped pressure or residual fluid between the isolation barriers. The "double block" refers to the two sealing mechanisms (primary and secondary) that prevent fluid from passing through, while the "bleed" refers to the valve's ability to release any trapped pressure or fluid from the space between the seals.

This unique design ensures that there is no leakage or contamination, even in cases where the primary isolation fails, providing enhanced safety in critical applications.

How Does a DBB Ball Valve Work?

A DBB ball valve works by isolating the flow of a fluid or gas through a pipeline in a secure manner. Here's how it operates:

1. Primary Isolation: The valve’s primary ball valve closes off the flow path, creating a secure seal that prevents any fluid or gas from passing through the valve.
2. Secondary Isolation: The secondary isolation mechanism, which is another sealing point, offers a backup layer of protection, ensuring that if the primary seal fails, the secondary seal will prevent any fluid from passing.
3. Bleeding: The bleed valve positioned between the two isolation points enables operators to safely release any trapped pressure or residual fluid between the two seals. This ensures that no dangerous pressure buildup remains in the isolated section.

The entire process works to provide a secure, leak-proof isolation and a safe environment for operations.

Benefits of DBB Ball Valves

DBB ball valves offer several significant advantages that make them ideal for demanding industrial applications:

1. Enhanced Safety

The double isolation feature ensures that any leaks are prevented, reducing the risk of hazardous fluid or gas escaping from the pipeline. Additionally, the bleed function allows for controlled pressure release, ensuring that no trapped pressure causes unintentional releases or equipment damage.

2. Reduced Space and Weight

The integrated design of the DBB ball valve eliminates the need for multiple valves, reducing the overall space required in pipeline systems. This compact design also reduces the overall weight of the system, making it ideal for offshore applications or compact installations.

3. Cost Efficiency

By combining the functionality of multiple valves into a single unit, DBB ball valves offer a cost-effective solution. Fewer components result in lower material costs, and less maintenance is required due to the integrated design. This also leads to reduced downtime for maintenance and repairs.

4. Improved Reliability

With two independent isolation points and a bleed feature, DBB ball valves offer reliable performance even in high-pressure environments. Their ability to handle hazardous fluids safely makes them a dependable choice for critical industries.

5. Compliance with Industry Standards

DBB ball valves meet international safety and performance standards such as ANSI, API, and ISO, ensuring they are suitable for use in industries with strict regulatory requirements.

Applications of DBB Ball Valves

DBB ball valves are commonly used in various industries where safety and reliability are paramount. Some of the most common applications include:

1. Oil and Gas Industry

In the oil and gas sector, DBB ball valves are used to isolate sections of pipelines during maintenance or pressure testing, preventing leaks and maintaining safety. They are also used in high-pressure systems to ensure secure flow isolation.

2. Petrochemical and Chemical Processing

In petrochemical and chemical plants, DBB ball valves provide double isolation to handle corrosive or hazardous fluids safely. The bleed function also ensures that any residual chemicals or gas are safely released, preventing contamination or accidents.

3. Power Generation

In power plants, DBB ball valves are used to control steam and water flow, isolate sections of the system for maintenance, and provide secure shutoffs in case of emergencies.

4. Water Treatment

DBB ball valves are essential in water treatment systems to isolate various parts of the system during maintenance or repairs. The ability to safely bleed off trapped pressure ensures that the system operates without causing environmental contamination.

5. Pharmaceutical and Food Industries

In the pharmaceutical and food processing industries, DBB ball valves are used to isolate and protect sensitive processes. Their ability to maintain the integrity of high-purity systems while ensuring leak-proof operation is essential for maintaining product safety and compliance with hygiene standards.

Material and Construction of DBB Ball Valves

The construction of a DBB ball valve depends on its application, but the following materials are commonly used:

• Stainless Steel: Offers excellent corrosion resistance, making it suitable for aggressive fluids in industries like petrochemicals and pharmaceuticals.
• Carbon Steel: Cost-effective and ideal for general industrial applications where corrosion resistance is less of a concern.
• Exotic Alloys: For extreme environments where higher corrosion or temperature resistance is required, such as offshore oil rigs or chemical plants.

Maintenance of DBB Ball Valves

While DBB ball valves are designed for long-term reliability, regular maintenance is crucial to ensure optimal performance. Key maintenance tasks include:

• Inspecting Seals: Ensure the primary and secondary seals are in good condition to avoid leaks.
• Bleed Valve Testing: Regularly test the bleed valve for functionality to ensure it releases trapped pressure safely.
• Lubrication and Cleaning: Regularly lubricate moving parts and clean the valve to prevent build-up that could cause malfunction.

Conclusion

DBB ball valves offer an excellent solution for isolating fluid flow and ensuring safety in critical applications. Their design provides enhanced safety, reduced space, and cost efficiency, making them a reliable choice in various industries. If you are looking to buy high-quality DBB ball valves, Freture Techno Pvt. Ltd. offers a range of innovative and durable solutions to meet your industrial needs.

Buy DBB Ball Valves from Freture Techno Pvt. Ltd., a leading manufacturer specializing in high-performance valve solutions in Mumbai, India. With our expertise and commitment to quality, we provide valves that meet international standards and enhance your operational safety.

Air Header Manifold: Essential Components for Streamlined Pneumatic Distribution

 Air header manifolds are pivotal components in modern industrial systems, providing a means to distribute compressed air or inert gases efficiently to multiple instruments or control points. These devices serve as centralized hubs, allowing multiple outputs from a single input, which simplifies the overall system structure, reduces piping requirements, and enhances operational efficiency. Commonly found in industries like oil and gas, petrochemical, and power generation, air header manifolds contribute significantly to maintaining safe and efficient processes.

This article explores the structure, functionality, types, installation process, and applications of air header manifolds.

What is an Air Header Manifold?

An air header manifold is a precision-engineered device designed to facilitate the distribution of air or other gases from a single source to multiple destinations. It features a single inlet that splits into several outlets, each capable of supplying air or gas to a connected device. This design allows for centralized control over multiple points in an industrial process, enabling efficient distribution and easy maintenance.

Air Header Distribution Manifold | Freture Techno Pvt. Ltd.

Key Features and Benefits:

• Optimized Air Distribution: By distributing air from a single source to various outlets, the air header manifold helps optimize system efficiency and reduces the need for extensive individual piping.
• Leak-Proof Design: High-quality sealing elements and durable construction ensure a leak-free system, even under high-pressure applications.
• Space-Saving Solution: Multiple connection points in one compact unit save space and simplify the layout of industrial setups.

Types of Air Header Manifolds

Air header manifolds come in various configurations to suit specific system requirements. Common types include:

1. 4-Way Air Header Manifold: This type has four outlets from a single inlet, ideal for smaller systems or those needing limited distribution points. Often found in compact setups, the 4-way manifold provides just the right amount of control for minimal points of distribution, making it a cost-effective choice for simpler installations.

2. 6-Way Air Header Manifold: With six outlets, this manifold is suited to systems with slightly greater distribution requirements. The 6-way configuration offers expanded connectivity without significantly increasing space or cost, making it a popular option for medium-sized setups.

3. 8-Way Air Header Manifold: The 8-way manifold is widely used in larger systems requiring a more extensive distribution network. This configuration is beneficial for industrial processes with more instruments that need reliable air or gas supply from a single source.

4. 12-Way Air Header Manifold: For large-scale installations, the 12-way manifold provides the maximum distribution capacity, allowing air or gas to reach a broad array of control points. Common in complex industrial environments, this configuration reduces the need for extensive individual piping, saving both time and space during installation and maintenance.

Each type of manifold can be customized to include additional safety features, such as pressure relief valves, depending on the needs of the specific application.

---

How Does an Air Header Manifold Work?

An air header manifold functions by taking air or gas from a main supply line and distributing it to several different instruments or control points within a system. The main inlet allows the gas to enter the manifold, where it is evenly split into multiple outlets. Each outlet is equipped with isolation valves, which enable independent control over each connection point, adding flexibility and enhancing the system's safety.

This setup allows for easy isolation of individual components without interrupting the entire system. For example, maintenance work can be conducted on one instrument without shutting down the entire network. This design reduces downtime and enhances the overall safety of the operation, as each component can be isolated as needed.

Materials and Construction

Air header manifolds are crafted from durable materials to ensure longevity and reliability in industrial applications. Common materials include:

• Stainless Steel: Highly resistant to corrosion, stainless steel manifolds are ideal for use in harsh environments or with gases that may be reactive.
• Carbon Steel: Often used in systems where cost-efficiency is a priority, carbon steel provides strength but may require additional corrosion protection.
• Aluminum: Lightweight and resistant to corrosion, aluminum manifolds are used in applications where weight is a concern.

To accommodate different industrial environments, manifold outlets are lined with protective materials such as PTFE, PFA, FEP, and PVDF. These coatings provide added protection against chemical reactions, ensuring the manifold remains durable and reliable even under challenging conditions.

Installation of an Air Header Manifold

The installation of an air header manifold involves several steps to ensure that the system operates efficiently and safely. Generally, the process includes:

1. Preparation of the System: Before installation, the entire system is inspected to determine the best placement for the manifold. Correct positioning is crucial for optimizing distribution and minimizing piping requirements.

2. Mounting the Manifold: Once positioned, the manifold is securely mounted to a support structure to prevent movement and vibration that could affect performance or lead to leaks.

3. Connecting the Inlet and Outlets: The main air or gas supply line is connected to the inlet, while individual outlet connections are linked to the corresponding instruments. Each connection is carefully sealed to ensure a leak-free setup.

4. Testing the System: After installation, the entire system is tested under pressure to confirm that all connections are secure and that the manifold distributes air or gas evenly to each outlet.

Applications of Air Header Manifolds

Air header manifolds play a vital role in many industries by facilitating effective air or gas distribution. Some common applications include:

• Oil and Gas: Used for the safe and efficient distribution of inert gases in upstream and downstream processes. Air header manifolds provide essential connectivity in hazardous environments where safety is paramount.

• Petrochemical: Often used to distribute compressed air or other gases across multiple control points within a plant. The manifold’s ability to prevent leakage and ensure even distribution makes it valuable in these complex environments.

• Power Generation: In power plants, air header manifolds enable the controlled distribution of gases to turbines and other critical systems, maintaining operational stability.

• Instrumentation and Control Systems: For precision tasks, air header manifolds provide a means to distribute air to instruments like pressure gauges, control valves, and monitoring equipment, ensuring accurate and consistent performance.

Why Choose an Air Header Manifold?

Air header manifolds offer several advantages that make them essential in modern industrial setups:

• Cost-Efficiency: By centralizing multiple connections in one unit, air header manifolds reduce the need for extensive individual piping, resulting in lower material and installation costs.

• Enhanced Safety: Equipped with isolation valves, these manifolds allow for the safe operation and maintenance of each connection point, reducing the risk of accidents.

• Reliability and Durability: Made from robust materials and featuring advanced sealing technology, air header manifolds provide consistent performance even in demanding environments.

Maintenance Tips for Air Header Manifolds

Regular maintenance is essential to ensure the longevity and efficiency of air header manifolds. Some best practices include:

• Inspecting Seals: Regularly checking seals for wear and tear can prevent leaks and ensure efficient performance.
• Cleaning the Manifold: Regular cleaning helps prevent buildup of particles that could obstruct the air flow or damage the internal structure.
• Testing Pressure Levels: Routine pressure testing verifies that the manifold maintains consistent distribution and does not compromise system integrity.

By adhering to these maintenance practices, industries can ensure the reliability and longevity of their air header manifolds, leading to optimized performance and minimized downtime.

In conclusion, Air Header Manifolds are vital components in modern industrial systems, offering streamlined air and gas distribution with configurations to suit any setup. Their adaptability, durability, and safety features make them ideal for a wide range of applications. For high-quality air header manifolds crafted to meet demanding industrial standards, consider Freture Techno Pvt. Ltd., a trusted name in the industry.
